Rutile
95%+
|
Australian Origin Rutile
95%
Guaranteed Chemical
Analysis |
|
TiO2 |
95.00% |
Minimum |
|
Total Iron as
Fe2O3 |
1.00% |
Maximum |
|
ZrO2 |
1.00% |
Maximum |
| |
|
|
|
Other
guarantees for specific elements
are subject to discussion for
individual contracts. |
| |
|
|
|
Typical
Chemical Analysis |
|
|
|
TiO2 |
95.00% |
|
|
Fe2O3 |
0.95% |
|
|
ZrO2 |
0.94% |
|
|
SiO2
(Total) |
0.60% |
|
|
Cr2O3 |
0.17% |
|
|
Al2O3 |
0.26% |
|
|
P |
<0.025% |
|
|
MnO |
0.01% |
|
|
CaO |
<0.02% |
|
|
MgO |
0.05% |
|
|
V2O5 |
0.46% |
|
|
Nb2O5 |
0.32% |
|
|
S |
<0.01% |
|
|
SnO2 |
0.02% |
|
|
U |
30 ppm |
|
|
Th |
50 ppm |
|
| |
|
|
|
Physical Data |
|
|
|
Specific
Gravity |
4.1 - 4.2 |
|
|
Bulk Density |
2.5 - 2.6 kg/ltr |
|
|
Bulk Density |
2.5 - 2.6 kg/ltr |
|
|
Grain
Fineness Rating |
|
|
|
A.F.S. No. |
77 |
|
| |
|
|
|
Rutile
concentrates are naturally
occurring products and are
subject to size variations.
The typical
size distribution is expected to
be as shown in the following
table but is not guaranteed. |
| |

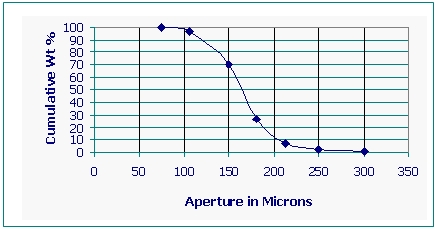

Typical Size Distribution
|
Aperture Microns |
Mesh BSS |
Retained WT % |
Cumulative WT % |
|
+300 |
+52 |
0.5 |
0.5 |
|
+250 |
+60 |
1.6 |
2.1 |
|
+212 |
+72 |
5.2 |
7.3 |
|
+180 |
+85 |
19.8 |
27.1 |
|
+150 |
+100 |
42.8 |
69.9 |
|
+106 |
+150 |
27.2 |
97.1 |
|
+75 |
+200 |
2.7 |
99.8 |
|
-75 |
-200 |
0.2 |
100.0 |
This product can be shipped as bulk
shipments, bulk in containers, 40 kg
multiwall paper bags palletised and shrink
wrapped, 1000kg, 1750kg or 2000kg bulka
bags as required to suit individual
customer's needs.
|
|
|
|
|
